CHANCS 12V DC Slow Speed Synchronous Motor - 15RPM Gear Reduction Motor with D-Shaft (CW/CCW Rotation) & Metal Gearbox for DIY Projects, Robotics, and Automation Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:25525037
Product Description
Speed: 2RPM 5RPM 10RPM 15RPM 20RPM 30RPM 40RPM 50RPM 60RPM 70RPM 80RPM 100RPM 120RPM 150RPM Specification: Shaft Diameter: 7mm；Shaft Length: 15mm；Size: 50*50*34mm (1.97"*1.97"*1.34")；No-Load Current: 20mA；Power: 2W；Rotation: CW/CCW Voltage: 12V24V Small Size, Big Torque Motor length 58mm, thickness 34mm. High torque for DIY. Low noise, Good Quality Metal-plastic hybrid gear, less noise, quieter motor operation. Small Power Consumption Minimum power 4W. Easy to Install Small weight, easy to install and use. PWM Speed Controller DC 12-40V 10A 370 Worm DC 12V Gear Motor TYC-50 12V DC 500 DC Gear Motor 390 DC Gear Motor Add to Cart Buying Options Buying Options Buying Options Buying Options Customer Reviews — — 3.8 out of 5 stars 26 5.0 out of 5 stars 5 2.5 out of 5 stars 3 Price $9.49$9.49 — no data — no data — no data — no data Size 28*55*60(mm) 30*22*76(mm) 57.5*57.5*20.8(mm) 19*32(mm) 29*46.5(mm) Voltage DC 12-40V 12V DC 12V DC 1-12V DC 6V DC Speed no data 2RPM 2.5-3RPM 500RPM 19000RPM Shaft no data 14mm 16mm 2mm 11mm
Product Features
Description JS-50 DC geared motor has an iron shell on the outside and plastic gears on the inside. The plastic gears are injection molded from high quality POM material, which is wear-resistant, low noise and not easy to deform.

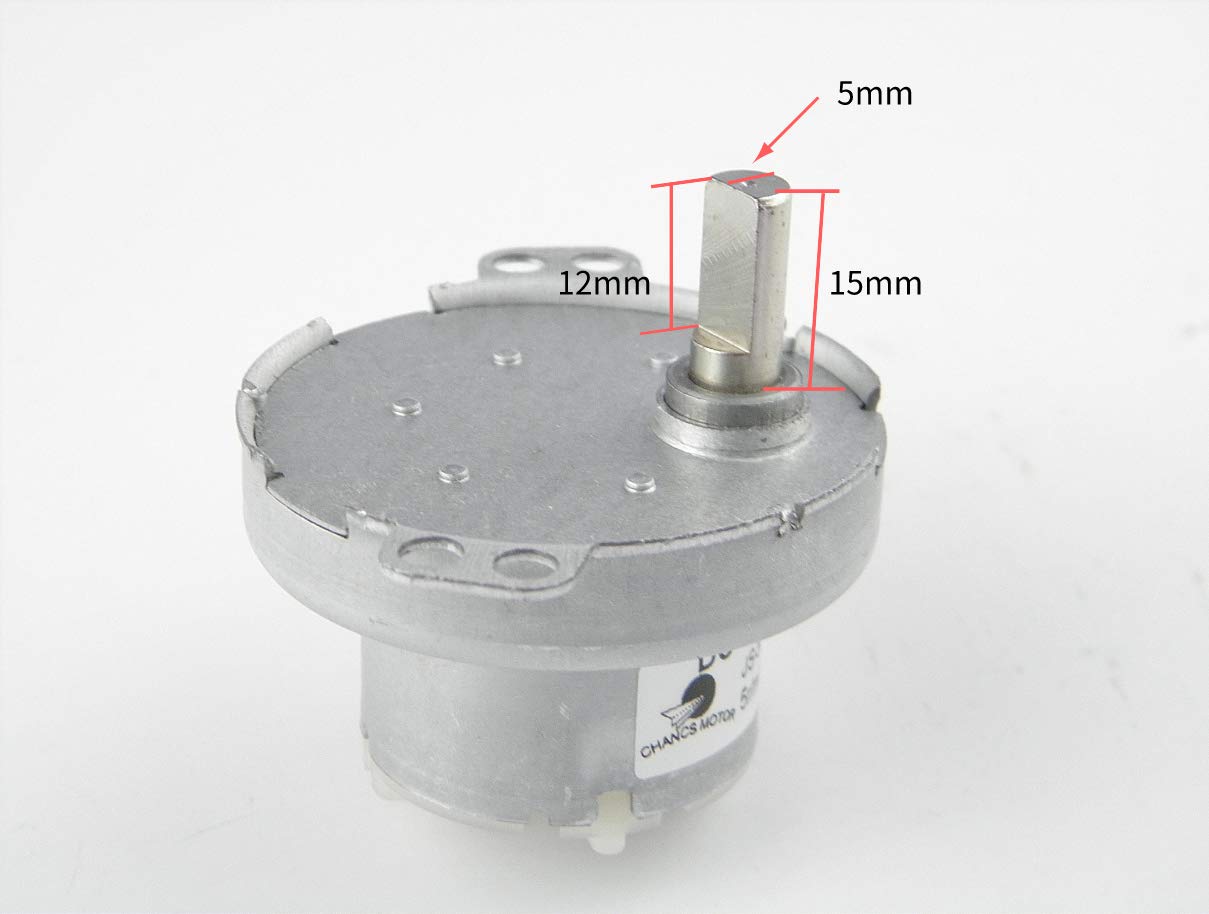

Specification Shaft D-shaft; Shaft Diameter 7mm (0.28"); Shaft Length 15.5mm(0.61")/15mm (0.59"); Size 50*50*34mm (1.97"*1.97"*1.34"); Working Voltage DC 12V; Speed 15r/min;No-Load Current34mA;Locked-rotor current185mA;Torque≤6kg.cm;Power 2W; Rotation CW/CCW There is a slight discrepancy in measurements, please check before ordering!!
ApplicationMainly used for direct current electric fan wind guide mechanism, swing head mechanism, heater, heater, all kinds of display stands, arts and crafts, and so on. Lighting fixtures, toys and other utensils, automatic doors and windows, vending machines, automatic barbecue grills, medical equipment, and air conditioning fan guide motors for all types of air conditioners. and microwave oven turntable motors, etc.
Attention 1.The applicable voltage of this motor is DC 12V, using AC power supply, the motor does not work; too high voltage will burn the motor.If you can't judge whether your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service before buying the motor. 2.The faster the speed, the quieter the relative noise will be. And, the higher the speed, the lower the torque.
About customMotor shaft, line length, speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us by email. Welcome to bulk purchase and OEM orders!
